DipTrace is a schematic and printed circuit board designing software that enables businesses to create multi-layer boards and 3D designs. The platform includes a component editor, which helps users define single and multi-part components via visual/electrical parameters.

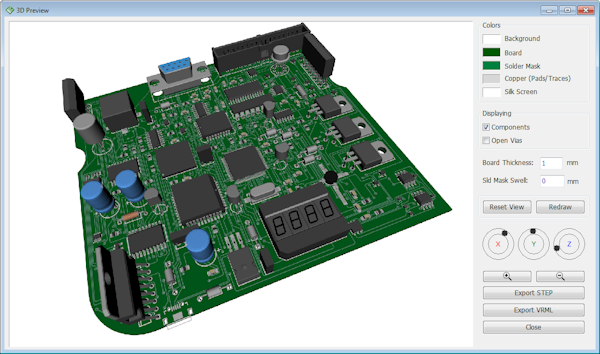

The placement tool in DipTrace comes with drag-and-drop capabilities, which allow organizations to add a variety of components by features, list and other custom attributes to specify the final layout of the board. It offers a host of features such as interactive visuals, electrical rule check, circuit-to-board-conversion, data import/export, 3D modelling and more. Additionally, administrators can view a 3D view of the final board, zoom in/out and rotate images on the axis.
